ALMR195

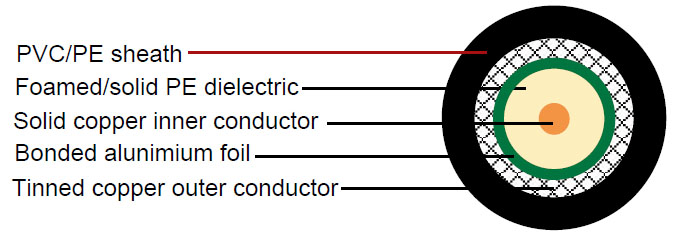

Construction :

  • Inner conductor Solid copper Φ3.61 mm
    Dielectric Foam /Solid PE Φ9.40 mm
    Shield Bonded aluminium foil Φ9.55 mm
    Outer conductor Tinned copper braid Φ10.3 mm
    Sheath PVC/PE Φ12.7 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 79.7 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 24.94 Ohm/Km
    Outer conductor resistance 16.08 Ohm/Km
    Operating temperature range -40°C - +85 °C
    Min.bending radius 25 mm

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    30 6.5 2.0
    50 8.4 2.6
    150 14.6 4.5
    220 17.7 5.4
    450 25.5 7.8
    900 36.5 11.1
    1500 47.7 14.5
    1800 52.5 16.0
    2000 55.4 16.9
    2500 62.4 19.0
    3000 67.5 20.6
    5800 93.0 28.3
